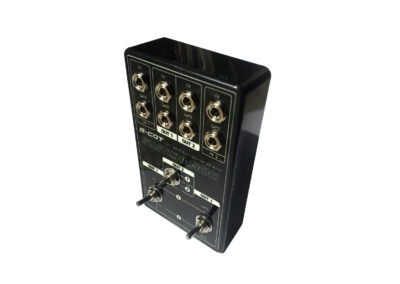

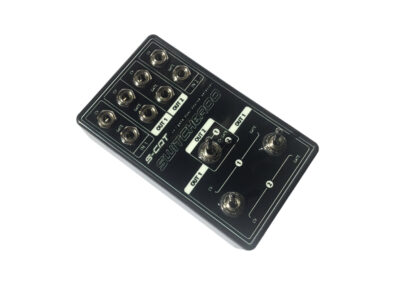

The S-CAT SWITCHEROO CV GATE SOURCE SELECTOR allows you to connect from two TB-303s or CLONES via their CV Gate output jack sockets. These connections are then sent directly from the output sockets 1 & 2 of the SWITCHEROO to one or two CV\Gate capable synthersizer inputs simultaneously, modern and vintage.

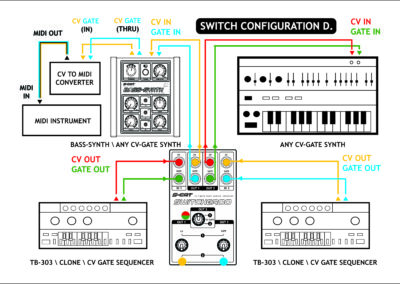

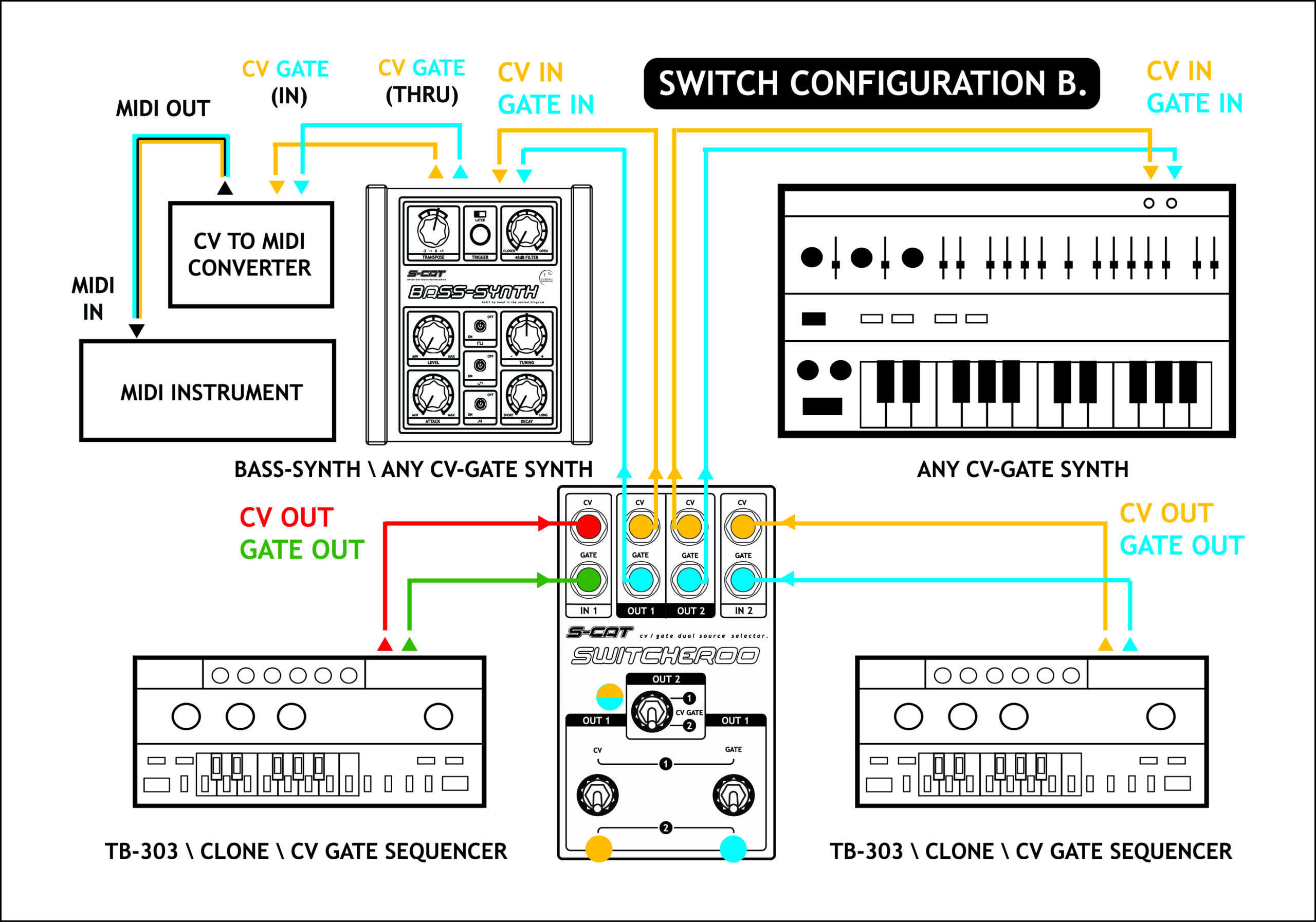

By switching over the CV Gate toggles, you can switch output configurations. For example, input 1 can be assigned to either output 1 and/or 2, and input 2 can be assigned to output 1 and/or 2. See charts A-H for the eight various possibilities.

What makes it unique is that you can use the CV from source 1 and the Gate from source 2, or vise versa, to create pattern variations on your externally connected synths that are generated by your TB-303 or CLONE sequencer at the flick of a switch or two.

Very simple, but oh, so effective!
